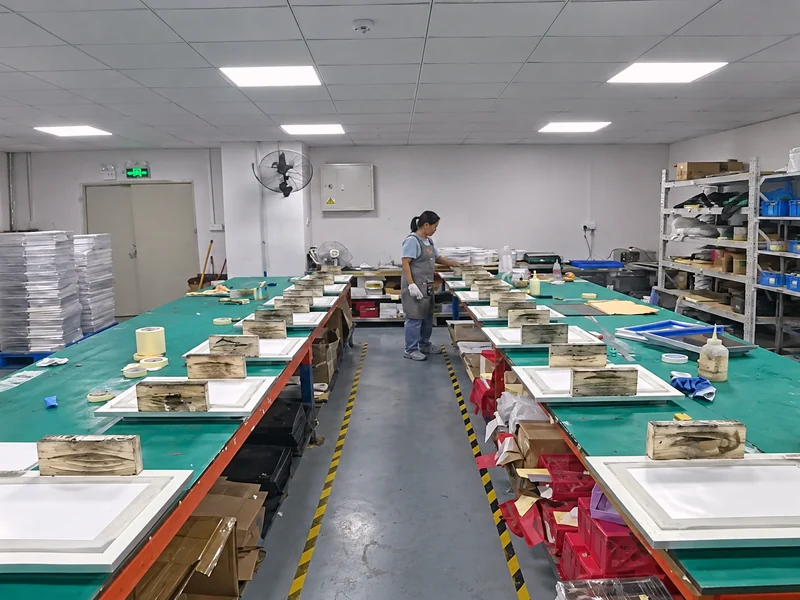

Every stencil is cut, tensioned and packed in our own workshop. These are photographs of the actual floor — not stock images.

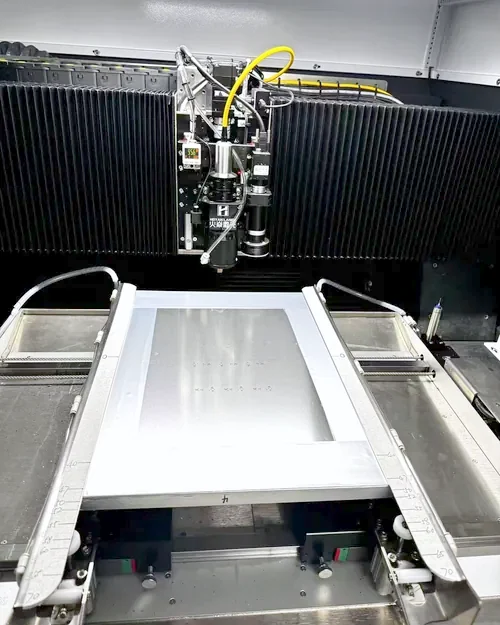

Fiber laser cutting, our workshop
- Fiber laser cutting of stainless foil

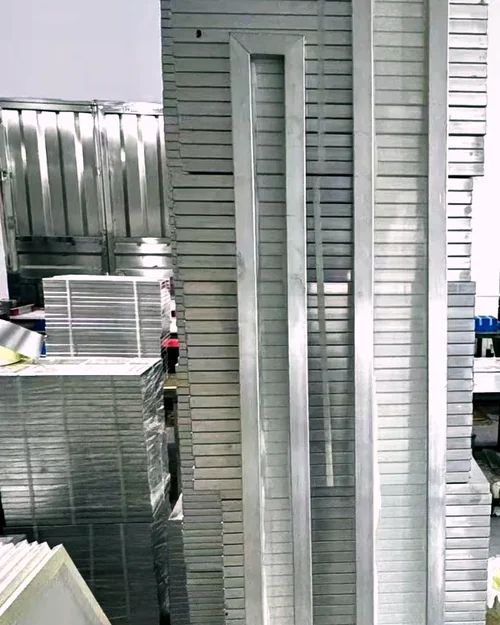

- Framing and mesh tensioning in-house

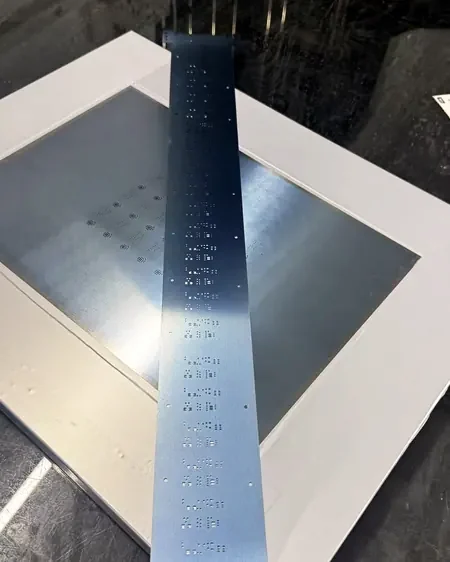

- Electropolishing and nano coating

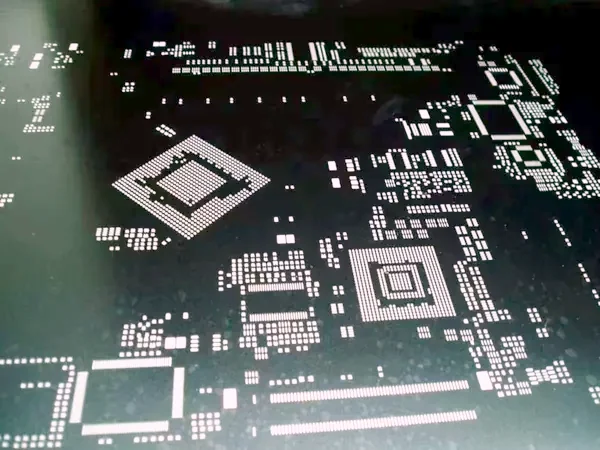

- Aperture inspection under magnification

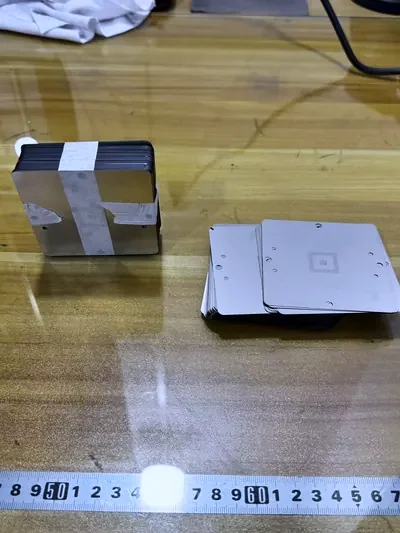

- BGA reballing and IGBT stencils

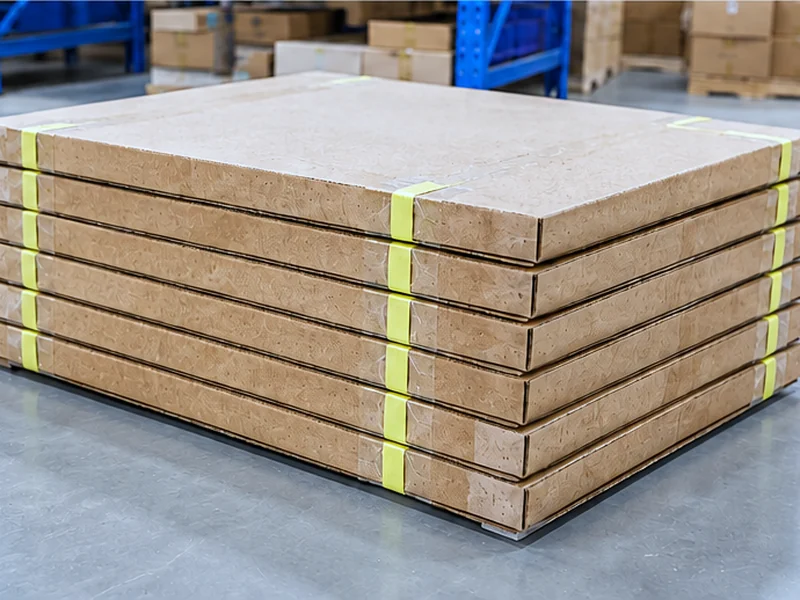

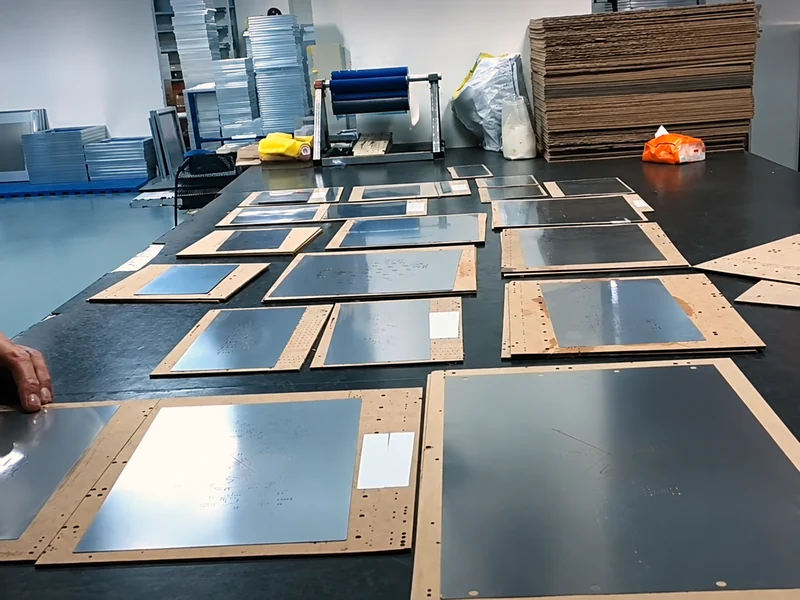

- Cleaning, packing and export shipping
Tell us the board you are printing and we will tell you which stencil it needs — even if that means sending you a thinner spec than you asked for.
Understanding stencil specifications
A short guide to the options you choose when ordering. If you are unsure what your board needs, send us the Gerber file and we will advise.
Frame size
Stencils mount into the printer on a frame. Common sizes are 584 × 584, 550 × 650 and 736 × 736 mm, plus the 400 mm-wide series from 400 × 600 up to 400 × 1500 mm. Which one you need depends on your printer model and the largest board you run.
Foil thickness
Thinner foil deposits less solder paste. Values run from around 0.08 mm for fine-pitch work up to 0.30 mm for large through-hole joints. 0.12 mm is a common starting point for mixed boards.
Aperture and area ratio

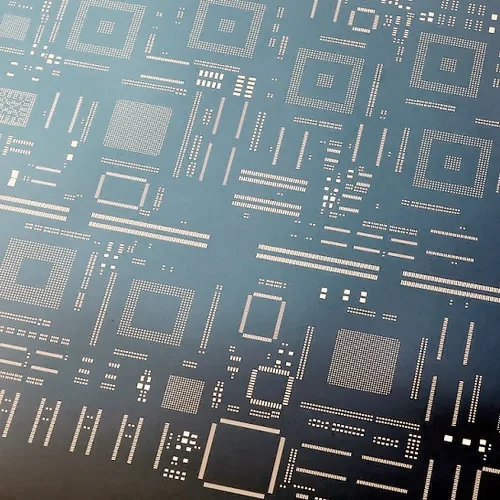

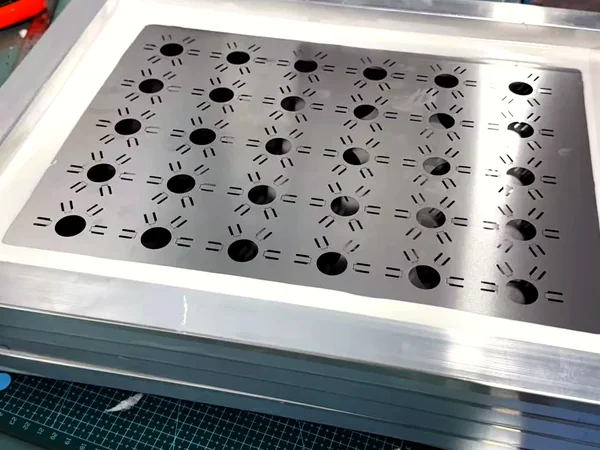

Apertures are the openings the paste passes through. As a rule of thumb, the opening area should be at least two thirds of the aperture wall area, or paste will not release cleanly. This is what limits how fine a pitch a given foil thickness can print.
Surface finish

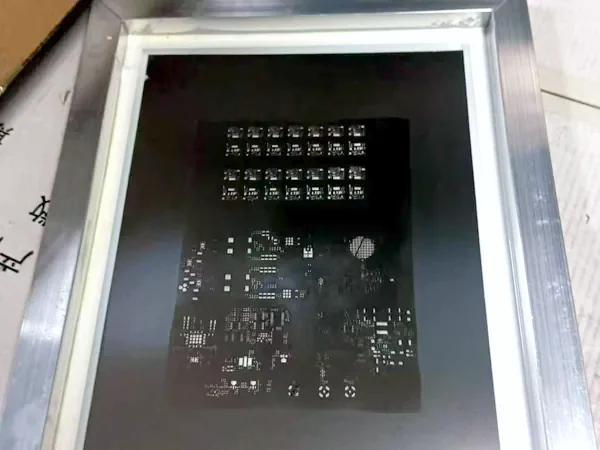

Laser cutting leaves a slightly rough aperture wall. Electropolishing smooths it and improves paste release. Nano coatings reduce how much paste sticks to the foil, which cuts how often you have to clean it.
Frame tension

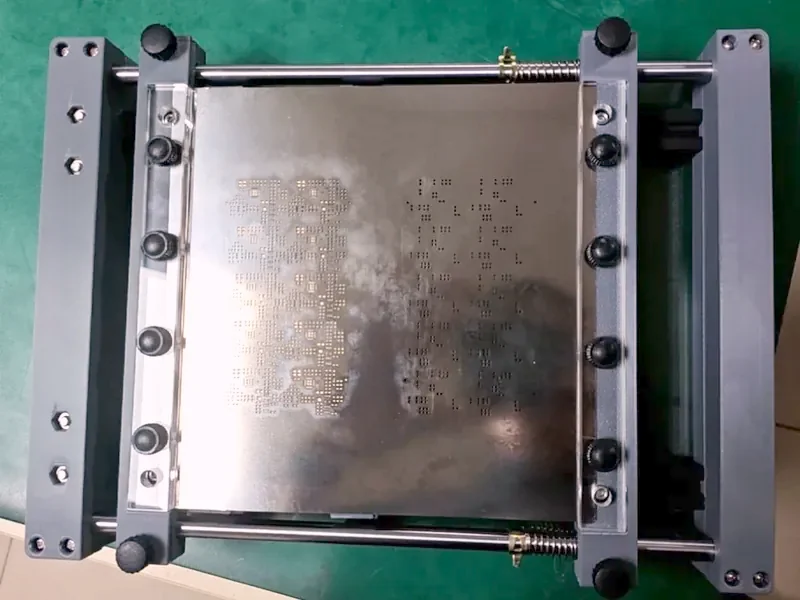

On framed stencils the foil is stretched into the frame. Even, adequate tension keeps the foil flat against the board during the print stroke, which matters most on large boards.
Not sure what to order?
Send us your Gerber file and tell us what you are assembling. We will tell you which stencil type and thickness suits the board, and quote it.
